Shovel-Ready Project – Installing a Drip Irrigation System – Part Two

Part Two: Installation.

95 degrees and not a cloud in sight – what a perfect day to install a drip irrigation system! The plants in the front yard are going to be thrilled, except for the fiber optic grasses, which appear to have succumbed to the dry conditions already. Maybe they’ll bounce back with a little water. We’ll see. If not, oh well. “Survival of the fittest” reins supreme in my garden.

The DIG installation guide recommended unrolling the 1/2" polytube and laying it out in direct sunlight to warm it up and make it easier to work with. Did someone say direct sunlight? Because we have lots of that here.
0102

Next, I screwed the backflow preventer onto the faucet, followed by the pressure regulator, then a short line of garden hose.
0160

I used a part called a swivel adapter to connect the end of the garden hose to the 1/2” polytube. It has a washer with a little screen inside it.
0163

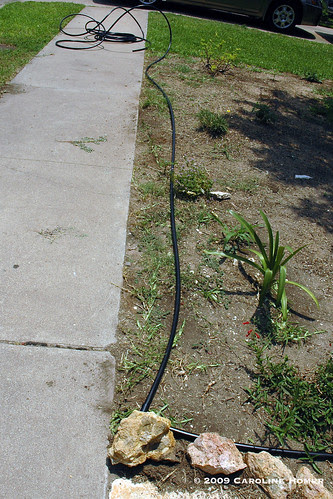

I started laying out the 1/2” polytube along the east side of the garden, much like a soaker hose.
0103

When I got to the corner of the bed, I cut the tube and attached the cut ends together with an elbow connector.
0104

I continued laying out the 1/2" tubing, repeating the above step at each of the next two corners.
0105

The tube cut easily with a standard pair of utility scissors.
0111

Once I had 1/2” polytubing laid out in a square around the bed, I laid out additional tubing in a series of rows, next to as many plants as possible. I used tee connectors to hook up the additional tubing to the main tubing. It was easy to cut the tubing, insert a tee and hook up the additional rows.
0112

Initially, I was going to set up separate systems on each side of the stone walkway, but I lost one of the connectors I needed to attach the water hose to the tubing, so I decided to hook the drip irrigation systems on both sides of the garden together. The 1/2” polytubing fit nicely under the flagstone at the end of the stone path.
0119

0117

The way the plants were arranged on the west side of the garden didn’t lend itself to rows, and I was running low on 1/2 inch tubing, so I snaked the remaining tubing around the garden as close to as many plants as possible.
0139

After I had all the 1/2” tubing laid out and connected like I wanted it, I turned on the water to flush out any dirt that might have snuck inside, then capped off all the ends with figure-8 closures.
0221

Now it was time to insert the drip emitters. The kit came with a little manual punch to make holes in the 1/2” tubing next to each plant. I pressed the barbed end of each drip emitter into a hole; a satisfying “snap” let me know I had the emitter in place. Because these are drought resistant plants, I used 1GPH (gallon per hour) emitters.
0796

0800

A handful of plants were located a bit too far from the 1/2” tubing, so I had to run 1/4” minitubing from the 1/2” tubing to the plant. The kit came with little connectors with barbs on both ends; one barb went into a hole made in the 1/2” tubing, the other into a piece of 1/4” minitubing. A drip emitter went on the opposite end of the minitubing.
0136

After anchoring the tubing with stakes, it was time to turn the water back on and test the system to make sure everything was working properly, with water dripping from each emitter.

Ta da! Everything works!
0120

Drip, drip, drip...
0129

Can you tell which lucky plant got a 2GPH drip emitter?
0142

Done--almost. A layer of mulch will go on top of the irrigation system, to hide the tubing and keep the water from evaporating. We still have stone edging to complete, flagstones to level and boxwoods to trim. But it's getting there!
